Autonomous Vehicle Path Planning by Searching With Differentiable Simulation

Method – Differentiable Simulation for Search

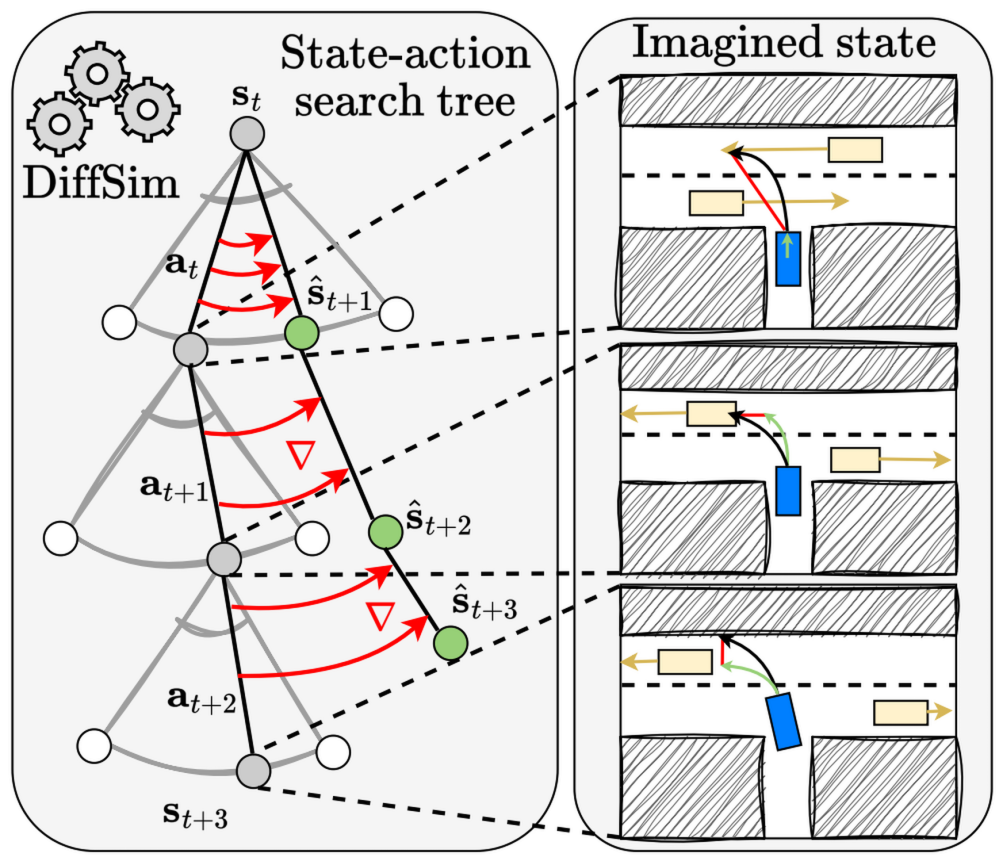

Plannig is the process of selecting the right actions by predicting and assessing their likely effects. One way to perform planning is to search for the best action sequence across multiple candidates. We demonstrate that differentiable simulation is well-suited for this search problem and enables very efficient planning.

Intuitively, to plan effectively, one needs three modules:

1. A policy to propose actions.
2. A state predictor to imagine the resulting states from them.
3. A critic to score them, according to the agent's preferences.

The overarching insight from previous successful planning methods is that environments where we can obtain such components nearly optimally are more suitable for successful planning. This is because a hardcoded realistic simulator used as a state predictor is always more accurate than a learned one that approximates it. Thus, to search efficiently, we require (i) the next-state predictor and critic to be as accurate as possible, so the agent's imagination faithfully represents a realistic probable future, and (ii) the relationship between the agent's actions and the imagined outcome to be “easy-to-model”, so that a small change in the actions leads to a small change in the imagined outcome. The Waymax simulator addresses both. Its hardcoded dynamics are realistic, making any sampled Monte Carlo trajectory highly informative. By being differentiable, we can backpropagate through it and any error in the imagined outcome induces a proportional error in the agent's imagined actions.

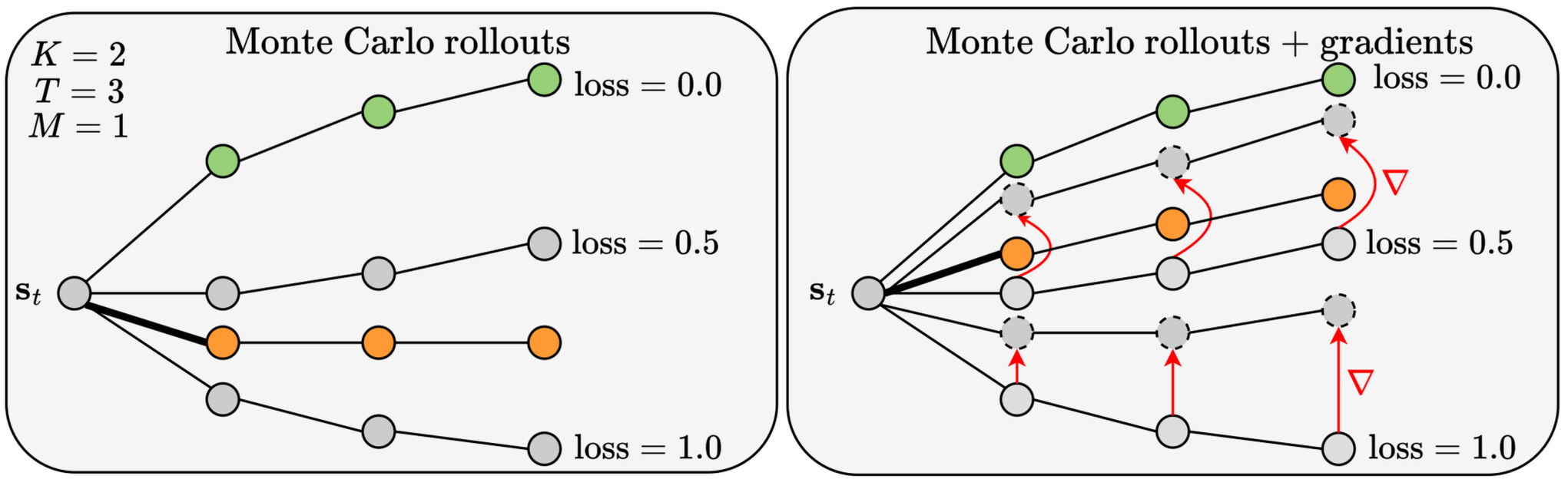

A typical planning agent that searches over action sequences works by imagining a few future trajectories, of a fixed length. In the figure above, there are K = 2 trajectories (gray), each of length T = 3 steps. If the simulator is not differentiable, we can still use it to accurately score each trajectory, assigning a loss for them. The final action, shown as a bold black line, is then selected by averaging the first actions from the best imagined trajectories.

In contrast, when the simulator is differentiable, we can compute the gradients of the loss with respect to the imagined ego-actions. They show exactly how the actions should be changed so that the loss decreases as fast as possible. After taking a single gradient descent step over the actions in this imagined space, the new trajectories are improved, shown as dashed gray circles. Averaging the first actions from the best new trajectories typically results in a much better action, which when executed in the real environment, produces a trajectory (orange) much closer to the best one (green). Thus, the unique feature of a differentiable simulator is that it allows the planning agent to search for the right actions in a more precise, instructive way.

Experiments and Results

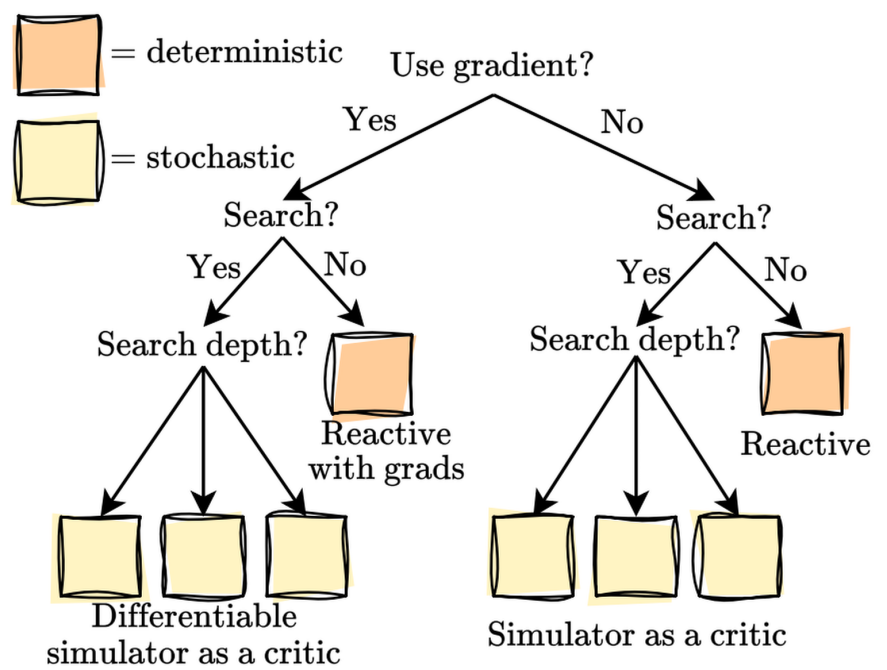

Our framework, Differentiable Simulation for Search, provides a rich testbed consisting of diverse agentic behavior. The case when the agent doesn't search across multiple imagined sequences or use the environment's differentiability provides a reactive baseline. If it doesn't search but relies on the differentiability, it is reactive with gradients. If it searches without using gradient descent, this represents a simulator as a critic setting. Finally, if it both searches and optimizes its actions, this is the our full proposed differentiable simulator as a critic setting.

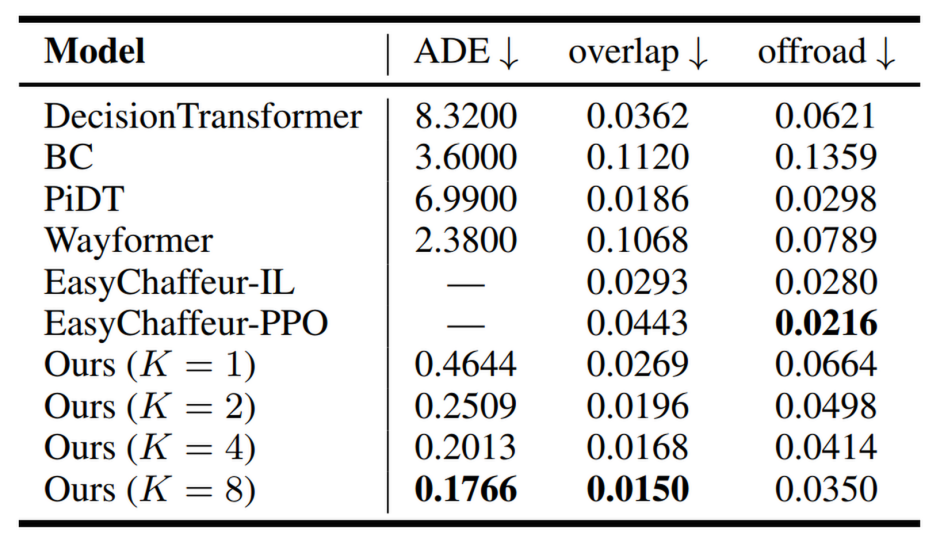

We evaluate in Waymax, over the scenarios from the Waymo Open Motion Dataset. We show that in a tracking experiment, our agent performs as much as 16.9 times better than the reactive setting, when measuring the average displacement with respect to the expert trajectory. This is evidence that our planning approach is useful for producing safer and more accurate trajectories. Even when comparing against well-established and state-of-the-art behavior cloning, reinforcement learning, and sequence prediction methods, our planning approach yields superior results, showing humanlike driving and less collisions.

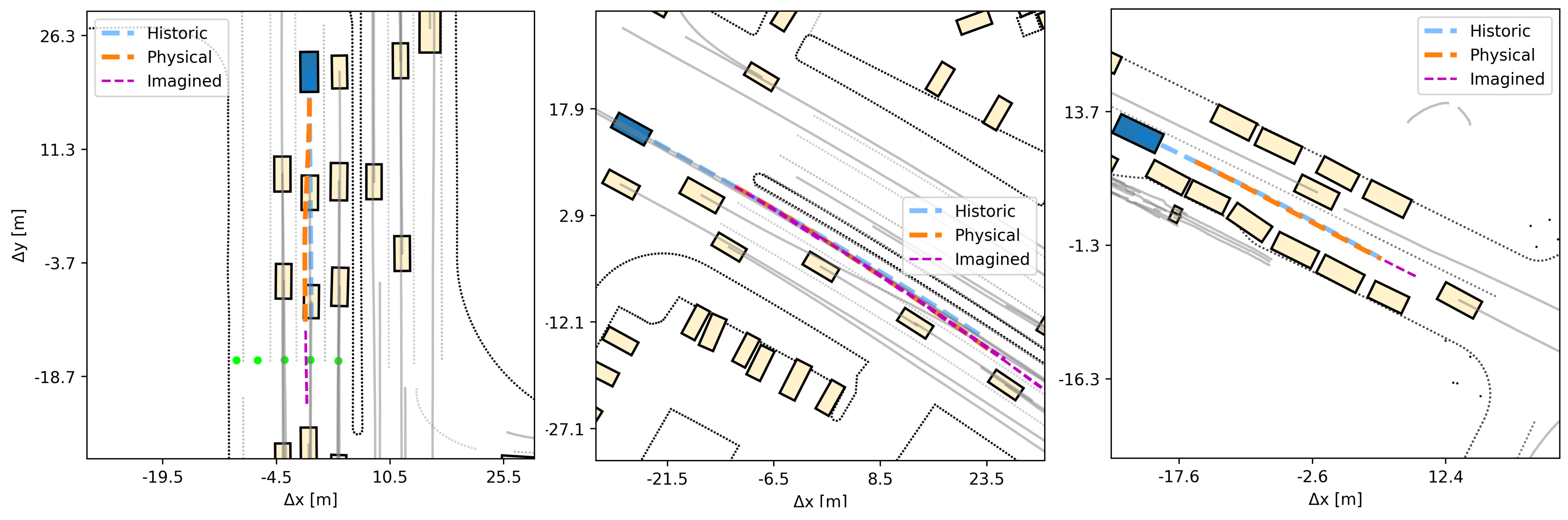

The figure below shows qualitative samples from our planning agent. The ego-agent is blue. Its executed trajectory is dashed orange, while the ground-truth expert one is blue. The agent drives by periodically imagining the future of its own motion and the other agents, and updating its actions so as to minimize a planning loss in this imagination. We show imagined trajectories in purple. In the first and last plots we only show the imagination after a certain timestep, while in the middle we show multiple imagined trajectories, from multiple timesteps. Overall, the obtained motion is realistic and humanlike, providing evidence that differentiable simulation can be used in yet another way, to guide the search process for the best actions at inference time.
